WDS-100 LCD Display Electronic Tensile Strength Testing Machine + Tensile Tester + Universal Testing Equipment5

WDS-100 LCD Display Electronic Tensile Strength Testing Machine + Tensile Tester + Universal Testing Equipment5

  • Min.Order Quantity: 1 Set
  • Supply Ability: 66 Sets per Month
  • Port: QingDao
  • Payment Terms: L/C
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-07-23
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.9243
  • Place of Origin:  Jinan
  • Brand Name:  Yongce
  • Model Number:  WDS-100
  • Weight: 370.000 kg

一、Main purposes and application scope of the testing machine

WDS-100 digital electronic universal testing machine is mainly used to test the tensile, compression and ring stiffness of plastic pipe fittings. In the tensile test, the maximum bearing force, tensile strength, elongation, elongation and other technical indicators of materials; in compressive test, bearing pressure, maximum tensile strength, compression deformation and other technical indicators of the test material. The above parameters at the end of the test, the test parameters set by the main controller according to the test at the beginning of the automatic calculation, and display the corresponding test results, the testing parameters at the end of the test can be printed, can also be saved in the controller to display query.

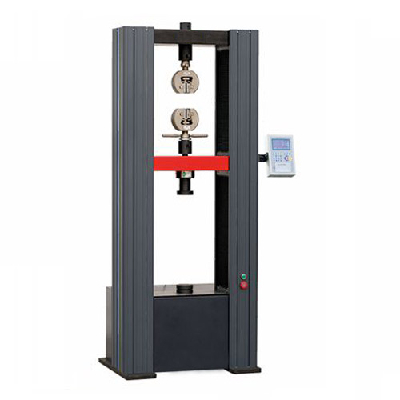

二、Product picture

This figure is for reference only.


  • Size:  0.9243
  • Place of Origin:  Jinan
  • Brand Name:  Yongce
  • Model Number:  WDS-100
  • Weight: 370.000 kg

三、Main technical indexes of testing machine

Number

Project

technical requirement

1

Max load

100KN

2

Model

WDS-100

3

Load range

2%-100%

4

Load accuracy

±1%

5

Test speed

0.1-500mm/min

6

Tensile space

700mm

7

Test width

450mm

8

Power supply

220V±10%   50Hz

9

Dimension

868mm*580mm*1836mm

10

weight

420KG

四、Host configuration:

Number

Project

Technical requirement

Number

1

Host


1set

2

Motor

Stepper motor

1set

3

Deceleration system

Synchronous belt

1set

4

Ball screw


2set

5

Load sensor

100kN

1set

6

Tension clamp

0-7mm、φ9-φ14

1set

7

Control system

igital display meter

1set
