- Size: 0.3075
- Place of Origin: Jinan
- Brand Name: Yongce
- Model Number: WDS-5
- Weight: 100.000 kg
一、Main purposes and application scope of the testing machine
WDS-5 digital electronic universal testing machine is mainly used to test the tensile, compression and ring stiffness of plastic pipe fittings. In the tensile test, the maximum bearing force, tensile strength, elongation, elongation and other technical indicators of materials; in compressive test, bearing pressure, maximum tensile strength, compression deformation and other technical indicators of the test material. The above parameters at the end of the test, the test parameters set by the main controller according to the test at the beginning of the automatic calculation, and display the corresponding test results, the testing parameters at the end of the test can be printed, can also be saved in the controller to display query.

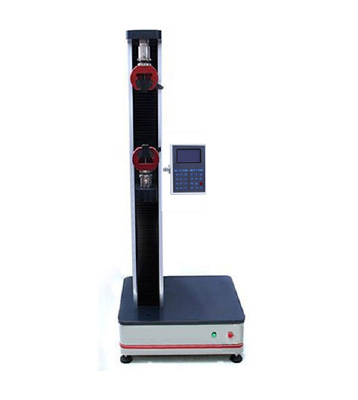

二、Product picture：
（This figure is for reference only.）
- Size: 0.3075
- Place of Origin: Jinan
- Brand Name: Yongce
- Model Number: WDS-5
- Weight: 100.000 kg
三、Main technical indexes of testing machine
Number | Project | technical requirement |
1 | Max load | 5KN |
2 | Model | WDS-5 |
3 | Load range | 2%-100% |
4 | Load accuracy | ±1% |
5 | Test speed | 0.1-500mm/min |
6 | Tensile space | 800mm |
7 | Test width | 120mm |
8 | Power supply | ～220V±10% 50Hz |
9 | Dimension | 500mm*410mm*1500mm |
10 | weight | 100KG |
四、Host configuration：
Number | Project | Technical requirement | Number |
1 | Host | 1set | |
2 | Motor | Stepper motor | 1set |
3 | Deceleration system | Synchronous belt | 1set |
4 | Ball screw | 2set | |
5 | Load sensor | 5kN | 1set |
6 | Tension clamp | 0-8mm | 1set |
7 | Control system | igital display meter | 1set |
